Product Details:
Payment & Shipping Terms:
|
Raw Material:: | Ceramic Fiber Spun Bulk | Item:: | 128kg/m3 Density Insulation Ceramic Fiber Blanket |
---|---|---|---|
Color:: | Pure White | Application:: | Liners Of Industrial Furnace |
Length:: | 3600-14640mm | Package:: | Plastic Bags Inside,carton Outside |
Chemical Composition: | Al2O3+SiO2≥99% | ||
High Light: | ceramic fiber wool insulation,refractory ceramic fibres |

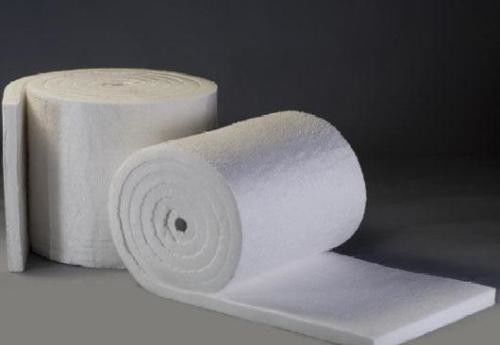

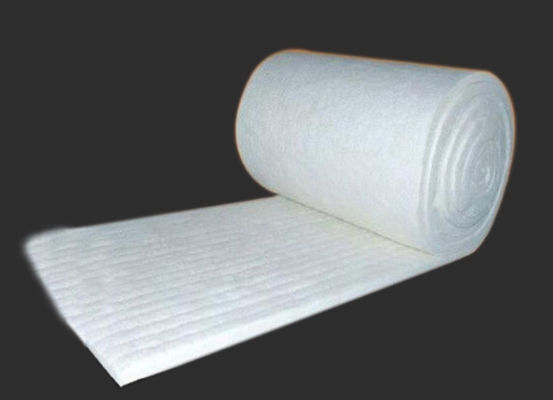

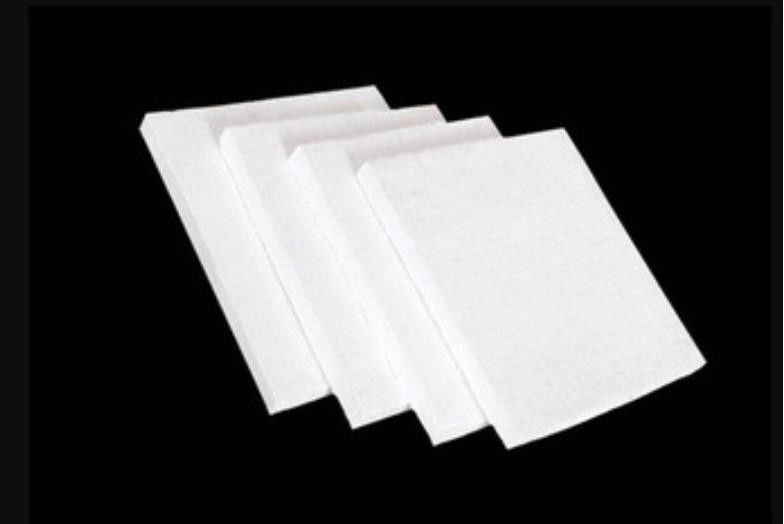

High Temperature Ceramic Fiber Products Including Ceramic Fiber Blanket/Board/Paper
Product Description
JUGE high temperature ceramic fiber textiles include cloth, rope, belt, yarn and other products. It is made of ceramic fiber, alkali-free glass filament and high temperature resistant stainless steel alloy wire. It has high strength, flexibility and strong process ability, not only has high temperature insulation performance, but also has the flexibility of ordinary textiles. In addition to the above products, we also provide high temperature resistant textiles with special specifications and performance according to the specific conditions based on user’s demand.
Product Features
Excellent high temperature tensile strength
Excellent electrical insulation property
Excellent corrosion resistance to acid, oil and steam
Low thermal conductivity
Excellent thermal insulation performance
Non-toxic and harmless, no adverse effects on the environment
Typical Application
Item | Unit | Aluminum Silicate Fiber Felt | High alumina aluminum silicate fiber felt | Needle punched aluminum silicate blanket | Zirconium-containing aluminum silicate fiber felt | Aluminum silicate fiber brick | Aluminum silicate fiber rope | |
Chemical composition | Al2O3 | % | 46 | >60 | >38 | >46 | >46 | |
SiO2 | % | <50 | <38 | <1.0(ZrO2) | 52 | 52 | ||
Fe2O3 | % | <1.2 | <1.0 | <1.0 | 1.2 | 1.2 | ||
Fiber diameter | μm | 1-4 | 1-4 | 2-4 | - | 1-4 | - | |
Density | Kg/m³ | ≥150 | ≥200 | ≥90 | ≥95 | ≥300 | ≥450 | |
Slag ball content(>0.22mm) | % | <4 | <4 | - | <10 | <5 | <5 | |
Thermal Conductivity | W/m.k | <0.045 | <0.045 | <0.038 | <0.055 | <0.068 | <0.068 | |
Maximum use temperature | 1100 | 1200 | 1250 |
Typical Application
Cloth
Insulation materials for high temperature tube and container; the shield for heat radiation, dress for protection of labor, high-temperature safety curtain, protection for cable or fuel tube, flame retardant coating of high temperature metal compensator, and other industrial thermal insulation, heat preservation, fire resistance and protection.
Rope
Insulation of high temperature tube and container etc., cable insulation twine, the seal of coking furnace opening, the dilatation joint of cracking furnace brick wall, the seal of the doors of electric furnace and oven, the seal of the boiler and hot gas obturator, bind of flexible expansion joint.
Tape
Insulation for the industrial, insulation twine of the air duct etc., the flange coupling of screw bolt, thermal radiation shield, the curtain of high-temperature furnace.
Yarn
Materials for stitching up the fireproof cloth.
