Insulating Block High Alumina Bricks Energy Saving AL2O3 30% ~ 46%

Name: Insulating Block High Alumina Bricks Energy Saving AL2O3 30% ~ 46%
Brand: WeiHang
SKU: WeiHang
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (131 reviews)

Large Image : Insulating Block High Alumina Bricks Energy Saving AL2O3 30% ~ 46%

Product Details:

Brand Name:	WeiHang

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Piece/Pieces
Price:	negotiation
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Apparent Porosity::	20-22%	Cold Crushing Streng:	60Mpa
Bulk Density::	2.4-2.6g/cm3	Material::	Alumina Block
Model Number::	Customer's Requirement	Refractoriness (Degree)::	1580°< Refractoriness< 1770°
Bulk Density::	1.9-2.15g/cm3
High Light:	high alumina fire bricks , light weight fire brick

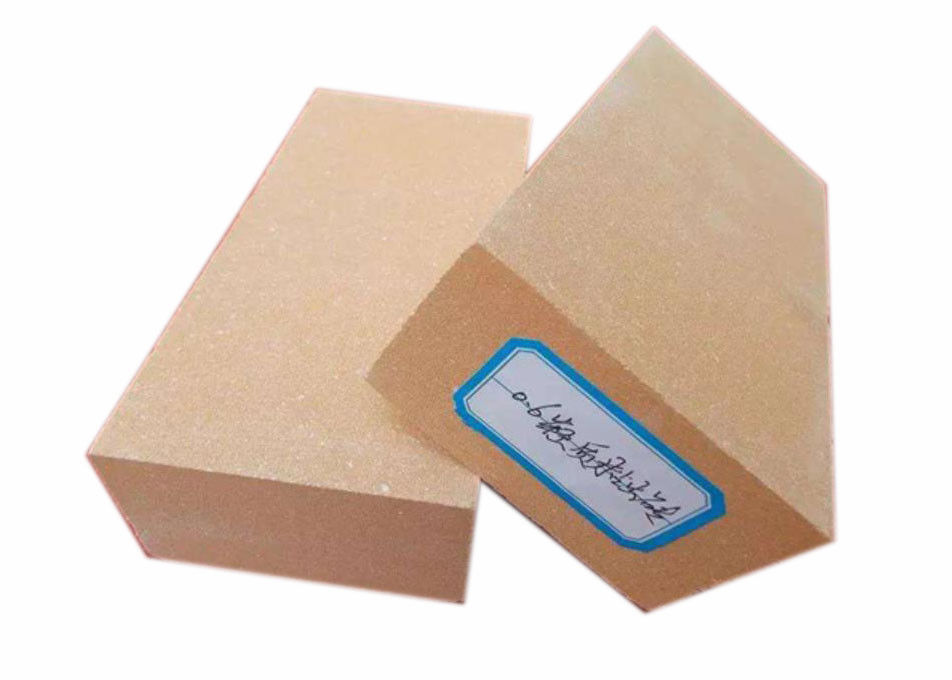

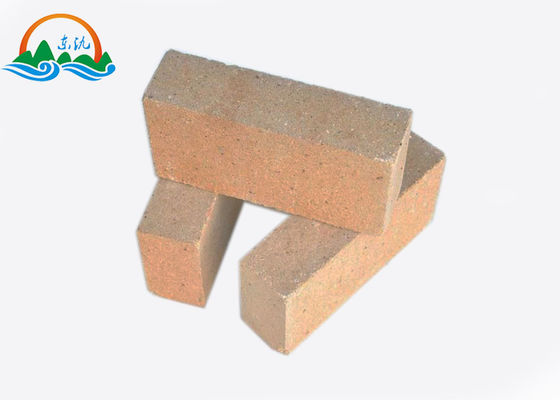

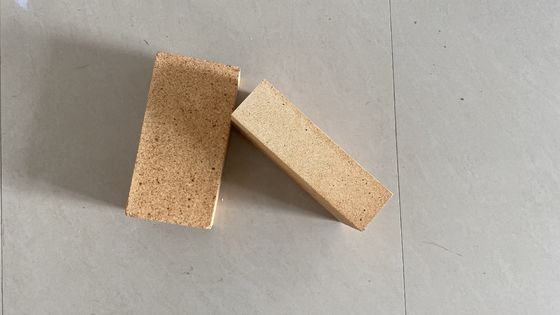

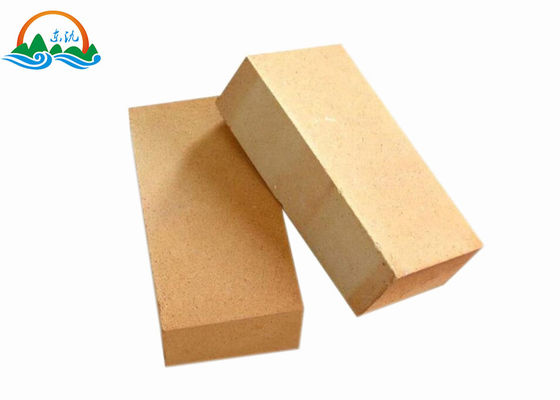

Energy Saving Brick High Aluminum Insulating Block Brick

Special size and OEM Service also provide!

The size is precise, providing kinds of shapes according to customer's drawing

High temperature endurable high alumina refractory brick/tile for tunnel kiln in Vietnam is made by clay clinker or light clinker and plastic clay as the main raw material, usually fuel production, but also can send or chemical foaming method porous structure. Common light chamotte bulk density of 0.75 ~ 1.2g / cm3. It refers to containing AL2O3 30% ~ 46% of lightweight refractory products, mainly for industrial kilns does not melt and no erosion of the contact action of gas insulation layer material, the using temperature is 1200 ~ 1400 ° C.

Item		Unit	Wear-resistant refractory brick
Item		Unit	NMZ-1	NMZ-2	NMZ-3
Chemical composition	Al2O₃	%	≥85	≥75	≥65
	SiO₂	%	≤15	≤25	≤35
	Fe₂O₃	%	＜1.0	≤1.2	≤1.5
Density		g/cm³	≥2.9	≥2.6	≥2.5
Compressive strength (normal temperature)		Mpa	≥100	≥85	≥70
Apparent porosity		％	≤18	≤20	≤21
Abrasion resistance		cc	≤6	≤7	≤8
Refractoriness		℃	≥1790	≥1790	≥1790
Linear change on heating (900℃×3h)		％	≤0.05	≤0.1	≤0.1
Thermal conductivity(350℃)		w/m.k	≤1.8	≤1.8	≤1.5
Thermal shock stability(1100℃Water cooling)		次	20	20	20

Specifications

1. According the shape, it can be divided into standard brick, special-shaped brick.
2. According thecharacteristic, it can be divided into high alumina insulating brick, fire clay insulating brick, Mullite insulating brick, corundum insulating brick, etc.
3. According the application, it can be divided into building materials for blast furnace, Building materials for coke oven, Building materials for steel making furnace and so on

Insulating Block High Alumina Bricks Energy Saving AL2O3 30% ~ 46% 0

Details:

1. Made by flint clay clinker and binder,through Crushing,Mixing,Shaping,Drying and high temperature Sintering.

2. Al2O3 content is 30%-48%,SiO2 content is 50%-65%,and a small number of alkali metals,alkaline earthmetal oxides TiO2,Fe2O3 etc.3.Working temperature:less than 1350°C.

Features

1. Excellent strength at ambient and elevated temperatures.
2. High compressive strength.
3. Very low levels of iron and other impurities.
4. Lightweight and energy-efficient.
5. Lower heat storage than denser refractory.
6. Heats quickly and economically to operating temperature.

Quality Assurance

The quality assurance system consists of the following steps:

a. Inspection and Control of incoming raw materials:According to the chemical content,raw materials are classified into different levels to ensure quality of brick first.

b. Inspection and control of the process:During the production,every brick will be weighed twice strictly to reduce the error of weight .

c. Inspection of product Standardization of quality of each product by process control and experimentation.

d. Taking corrective measures whenever deviations are noted.

e. Quality audit by quality management.Before delivery, the inspectors will inspect the size,appearance,physical and chemical properties of brick again in factory.

Factory show:

Tag:
