Fireproof Zirconia Brick Mullite Insulation Brick For Sintering Furnace

Large Image : Fireproof Zirconia Brick Mullite Insulation Brick For Sintering Furnace

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	weihang

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Piece/Pieces
Price:	Negotiate price
Packaging Details:	wooden pallet with paper each layer, wrapped with thick paper and PVC film outside.
Supply Ability:	1000 Metric Ton/Metric Tons per Month

Contact Now

Detailed Product Description

Refractoriness (Degree):	1770°< Refractoriness< 2000°	Cold Cushing Strength (mpa):	≥90
Rervice Temperature:	1500	0.2MP Refractoriness Under Load:	1500
Shape:	Brick, Standard Or Customized By Your Drawings
Highlight:	k23 insulating firebrick , thermal insulating brick

Zirconia Mullite Brick For Sintering Furnace Zirconia Mullite Insulation Brick

Description For Refractory Heat Insulating Brick :

Composed of compound mullite , the brick are processed through moulding under high pressure and sintering at high temperature , with feature of strong strength,steady bulk at high temperature and small creep rate, which are available for hot blast stove of large and middle size.

Applications For Refractory Heat Insulating Brick :

Mullite insulation bricks refractory material can be used in linings or heat-insulating

materials of the industries, such as, ethylene pyrolysis furnaces, tubular furnaces,

reforming furnaces of synthetic ammonia, gas generators and high-temperature shullte kilns, etc.

Item Brand		JM23	JM26	JM28	JM30
Max Temperature ( C)		1260	1460	1540	1700
Bulk Density (g/cm3)		0.55-0.60	0.8	0.89	1.03
Cold Crushing Strength (Mpa)		1.2	1.6	2.1	2.5
Modulus of Rupture (Mpa)		0.9	1.4	1.6	2.1
Reheating Linear Change (%) CT -30 °CX 8H		1230 °C -0.5	1400 °C -0.5	1510 °C -0.5	1620 °C -0.9
Thermal Expansion 1100 °C( % )		0.5	0.7	0.8	0.8
Thermal conductivity (W/m.k )	400 °C	0.14	0.27	0.32	0.41
	600 °C	0.16	0.29	0.34	0.43
	800 °C	0.18	0.31	0.36	0.44
	1000 °C	0.20	0.33	0.38	0.45
Al2O3 %		37	50	64	72
Fe2O3 %		1.0	1.0	1.0	0.5

Packing Details

The bricks are packed on wooden pallet with papers in each layer and PP film wrapped outside of the whole pallet.

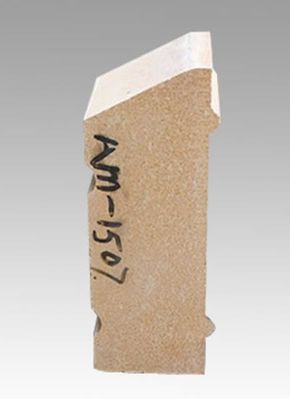

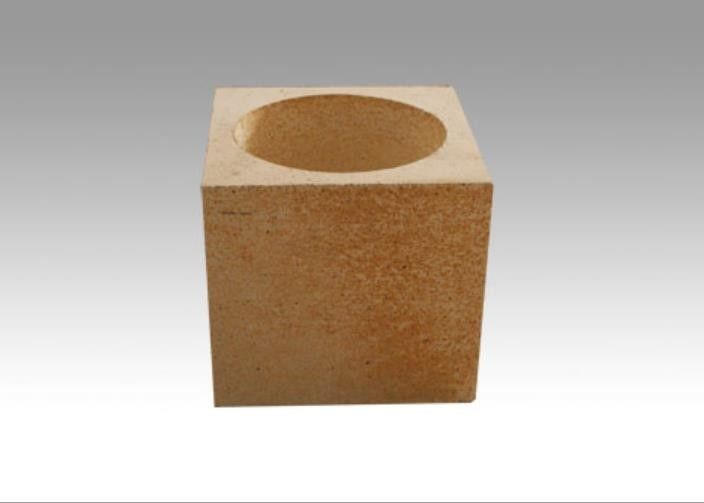

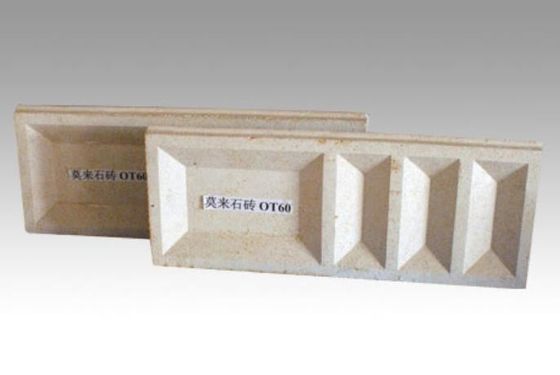

Fireproof Zirconia Brick Mullite Insulation Brick For Sintering Furnace 1
