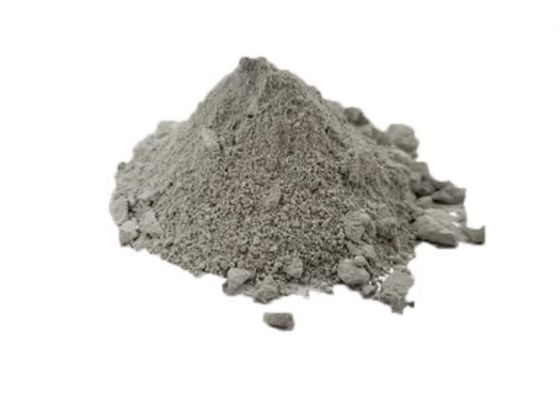

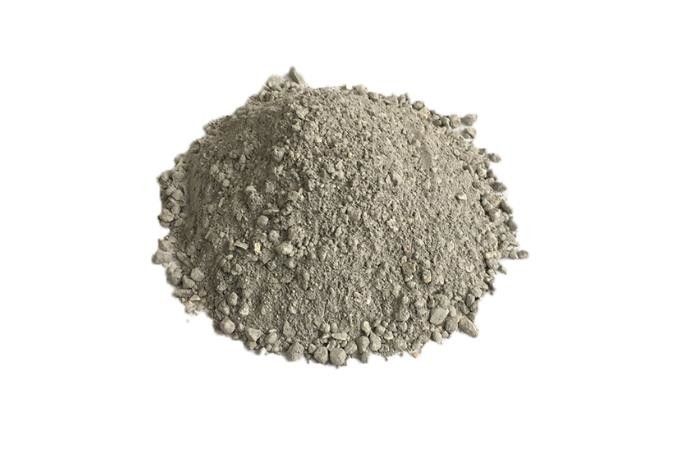

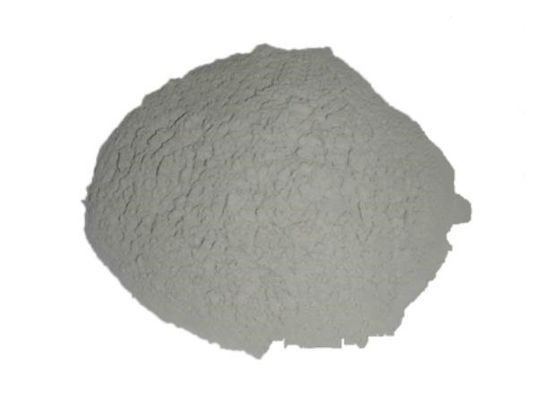

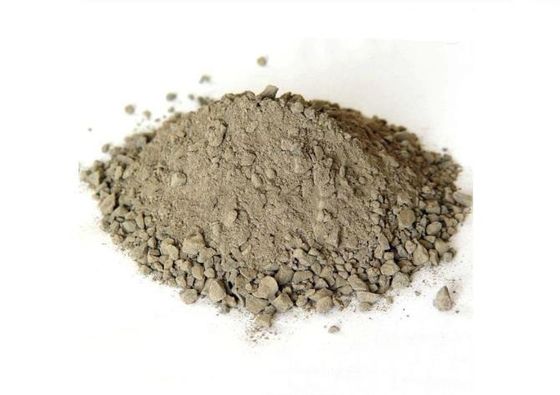

Lightweight Insulating High Alumina Self-Flow Refractory Castable
Product Description
Light weightmullite castable has properties:
The utility model is applicable to the working lining or thermal insulation lining of industrial kilns such as flame furnaces to realize high temperature and energy saving.
With high intensity and small volume, it is used as the top, wall and door of industrial kilns, with a structural weight of more than 30% less than that of ordinary low-cement castable, so as to eliminate hidden dangers such as structural broken bricks and collapse.
With high quality porous mullite as the aggregate, with a variety of micro powder and dispersants, Yin has low thermal conductivity, good thermal insulation effect and a ratio of ordinary castable, which can reduce the heat loss of furnace by 25%~35% and save about 10% of fuel.
| Item |
Unit |
Wear-resistant castable material |
| NMS-1 |
NMS-2 |
NMS-3 |
| Chemical composition |
Al2O3 |
% |
≥80 |
≥75 |
≥60 |
| SiO2 |
% |
≤15 |
≤25 |
≤40 |
| Fe2O3 |
% |
≤1.0 |
≤1.5 |
≤2.0 |
| Density |
g/cm3 |
≥2.8 |
≥2.6 |
≥2.5 |
| Compressive strength |
110℃×24h |
Mpa |
≥80 |
≥70 |
≥50 |
| 1000℃×3h |
Mpa |
≥100 |
≥80 |
≥60 |
| Antiflex strength |
110℃×24h |
Mpa |
≥10 |
≥8 |
≥6 |
| 1000℃×3h |
Mpa |
≥15 |
≥12 |
≥8 |
|
Linear change on heating
(1000℃×3h)
|
% |
≤-0.5 |
≤-0.5 |
≤-0.5 |
| Abrasion resistance |
cc |
≤6 |
≤8 |
≤12 |
| Refractoriness |
℃ |
≥1790 |
≥1750 |
≥1730 |
| Thermal shock stability(1100℃Water cooling) |
Times |
25 |
25 |
25 |
Characteristics:
1. High refractoriness, High refractoriness under load.
2. High density, low porosity.
3. Good slag resistance and corrosion resistance.
4. High strength and wear resistance.
5. Good resistance to flake performance.
6. Good thermal shock stability.
7. Scouring resistance
8. Good hot strength.
Application:
Steel ladle corundum wear-resistant castable refractory is widely used in high temperature cyclone separator, inner lining of circulating fluidized bed, and lining body of steel outlet groove of heating furnace.
