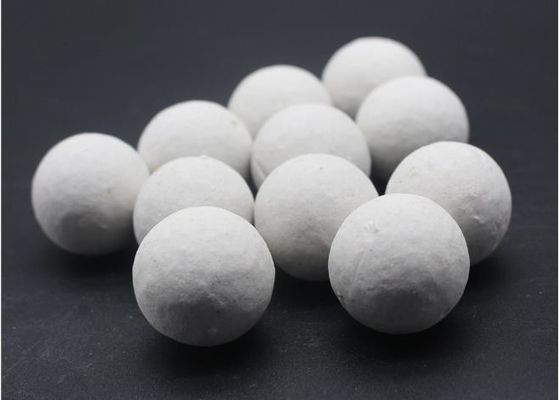

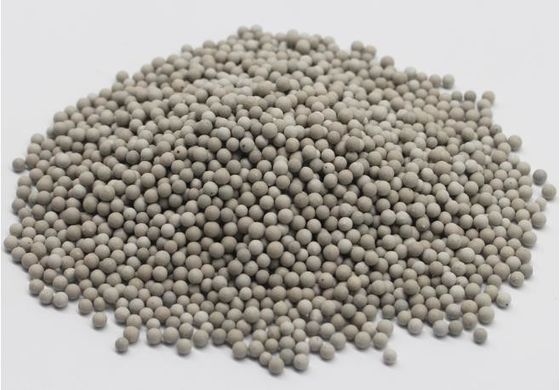

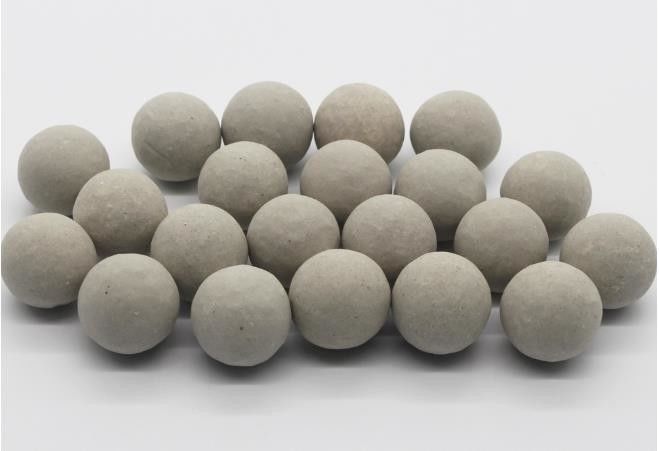

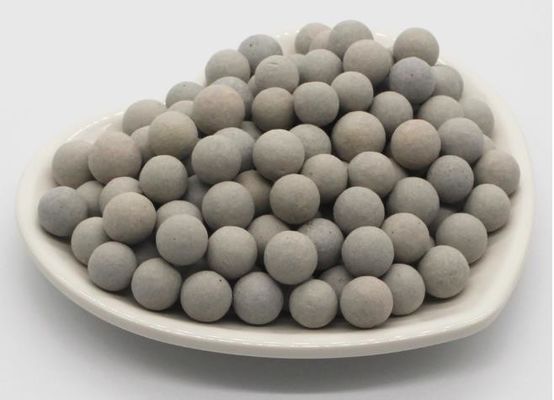

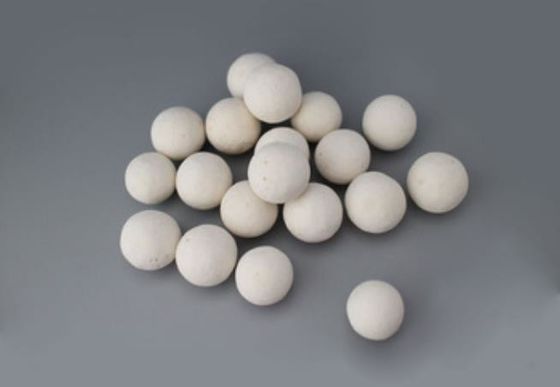

Manufactory Inert porcelain alumina ceramic ball for catalyst bed support media
Production Introduction
Inert alumina ceramic ball has the characteristics of high strength, low water absorption, high chemical stability, high thermal stability, resistance to high temperature and high pressure. It can not only resist the corrosion from the acid, alkali, salt and other organic solvent, but also the temperature change in production process.
Inert alumina ceramic ball is widely used in petroleum, chemical, fertilizer, natural gas and environmental protection industries, as the supporting and covering material of catalyst in reactors. Its main role is to increase the distributing spot of gas or liquid, also support and protect the activated catalyst with low strength.
Typical Application: Be mainly used in the petroleum, chemical industry, fertilizers,natural gas, environmental protection and other industries. It plays a role of supporting and compacting the packing of the tower.
Warranty: By National Standard HG/T 3683.1-2014 .
Free consultation during the warranty period.
Normal Package: 25KG/Plastic bag;1300KG/Super sack. Steel drum.
| Model |
17%-19%Ordinary Ceramic Ball |
| Color |
Light gray |
| Shape |
Ball |
| Chemical composition |
|
Min. % |
Max. % |
Usual % |
| Al2O3 |
17 |
19 |
18 |
| SiO2 |
70 |
77 |
74.9 |
| Al2O3 + SiO2 |
90 |
94 |
93 |
| Fe2O3 |
/ |
1.0 |
0.9 |
| TiO2 |
/ |
0.5 |
0.46 |
| CaO |
/ |
0.5 |
0.42 |
| MgO |
/ |
0.5 |
0.38 |
| Na2O |
/ |
2 |
1.12 |
| K2O |
/ |
3.5 |
3.28 |
| Physical properties |
Leachable Iron (%) |
≤0.1 |
| Apparent Porosity by Weight (%) |
D≥10mm |
≤0.4 |
| D=6mm |
≤1.0 |
| D=3mm |
≤3.0 |
| Water absorption (wt.%) |
<0.5 |
| Acid resistance (%) |
>99.8 |
| Alkaline resistance (%) |
>85 |
| Bulk Density |
(g/cm3) |
1.35 |
| (lb/ft3) |
84 |
| Specific density |
(kg/m3) |
2300 |
| (lb/ft3) |
144 |
| Moh’s hardness (scale) |
>6.5 |
| Thermal conductivity (w/m2.k) |
0.9-1.0 |
| Specific heat (J/kg.℃) |
628-837 |
| Max. Operating Temperature |
(℃) |
1050 |
| (℉) |
1922 |
| Thermal expansion (%) (500℃) |
0.20 |
|
Thermal Shock Stability (times)
(500 ℃ then water cooling)
|
10 |
| Geometric properties |
Nominal Size |
(mm) |
3 |
6 |
10 |
13 |
16 |
19 |
25 |
38 |
50 |
| (inch) |
1/8 |
1/4 |
3/8 |
1/2 |
5/8 |
3/4 |
1 |
1.5 |
2 |
| Crush Strength Min. |
(lbs) |
77 |
176 |
234 |
572 |
726 |
1672 |
1870 |
2090 |
3476 |
| (kg) |
35 |
80 |
106 |
260 |
330 |
760 |
850 |
950 |
1580 |
| (N/PC) |
343 |
784 |
1039 |
2548 |
3234 |
7448 |
8330 |
9310 |
15484 |
Packing and delivery:
Packing of Insulating brick: Standard export wooden pallet with cardboard.
Shipping of Insulating brick: By vessel or by train from any Chinese port,
Samples can be delivered by International express.
FAQ
Q1 : How can you control your quality?
A1: Donghua company will conduct reburning test and chemical analysis test on the products after the completion of the products.
Q2: What is your lead time?
A2: If you are buying a finished product, Donghua guarantees to ship within one week; if it is a customized product, it will take about 15-20 days.
Q3: What is your payments terms?
A3: We can accept 30% deposit, 70% balance to be against the BL copy or by LC, or other payment terms.
Q4: Can we visit your company?
A4: We warmly welcome your arrival.
