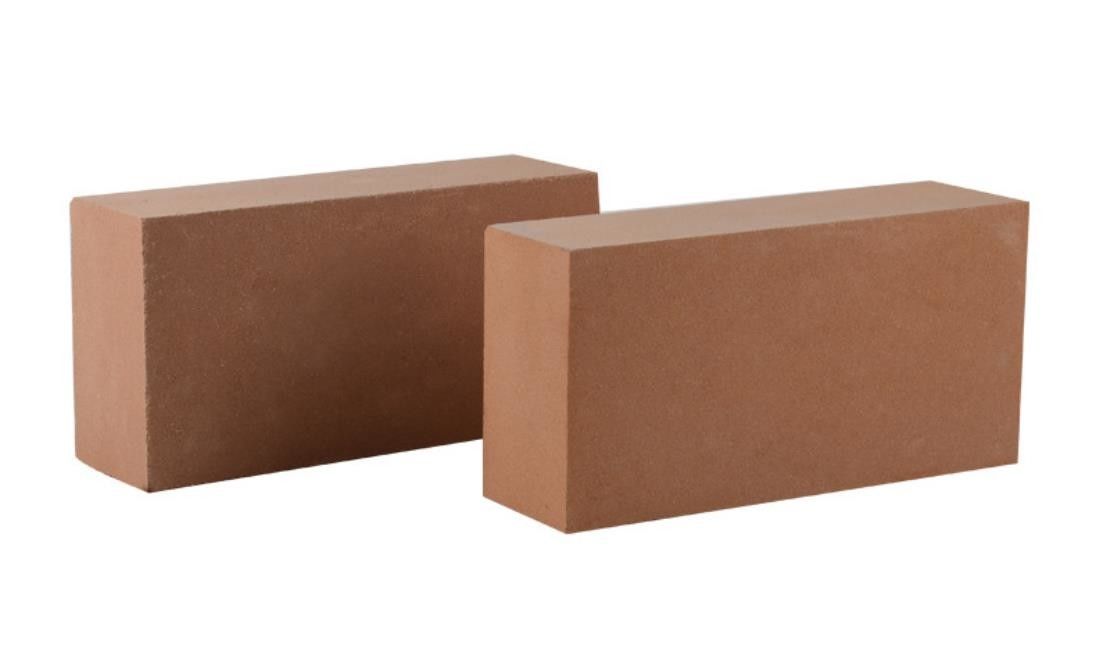

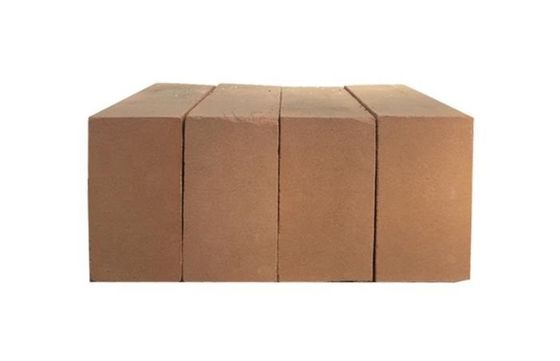

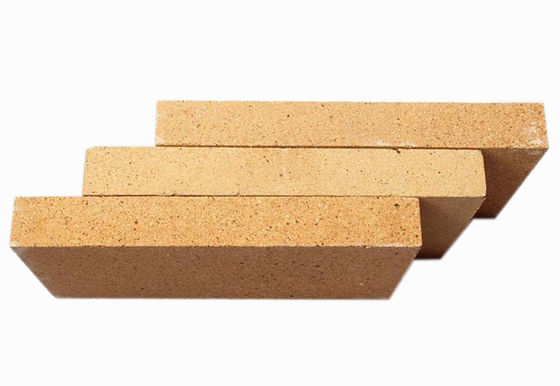

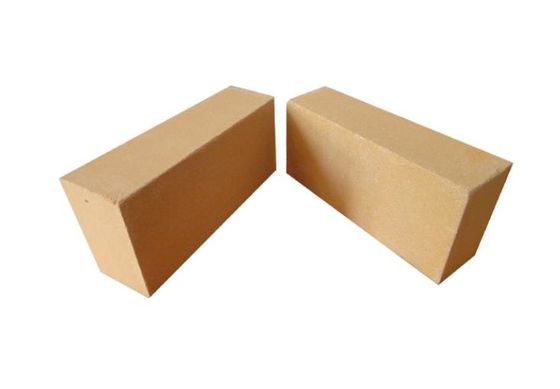

High Thermal Diatomite Bricks Fire Clay Brick For Refractory From Jiangsu

Name: High Thermal Diatomite Bricks Fire Clay Brick For Refractory From Jiangsu
Brand: WeiHang
SKU: WeiHang
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (200 reviews)

$High Thermal Diatomite Bricks Fire Clay Brick For Refractory From Jiangsu$

$High Thermal Diatomite Bricks Fire Clay Brick For Refractory From Jiangsu$

Large Image : High Thermal Diatomite Bricks Fire Clay Brick For Refractory From Jiangsu

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	WeiHang

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Piece/Pieces
Price:	negotiation
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Apparent Porosity::	20-22%	Cold Crushing Streng:	60Mpa
Bulk Density::	2.4-2.6g/cm3	Product Name::	Insulating Brick
Model Number::	Customer's Requirement	Refractoriness (Degree)::	1580°< Refractoriness< 1770°
Bulk Density::	1.9-2.15g/cm3
High Light:	insulating refractory brick , lightweight fire brick

Lightweight Diatomite Insulating Fire Clay Brick For Refractory From Jiangsu

Special size and OEM Service also provide!

The size is precise, providing kinds of shapes according to customer's drawing

Product Description:
Also known as silica insulation bricks. More than 91% of silica, with a bulk density of 1.2g/cm3 or less, is a lightweight refractory material. The refractoriness and load softening temperature are similar to ordinary silica bricks with the same composition. However, due to many pores, the compressive strength, slag resistance, and corrosion resistance are not as good as those of ordinary silica bricks, but the thermal shock resistance is improved.
Light weight silica brick
Using finely divided silica as a raw material, its critical particle size usually does not exceed 1 mm, and particles smaller than 0.5 mm therein are not less than 90%. The flammable substances are added to the ingredients or a porous structure is formed by a gas generation method and is obtained by firing. Can also be made without burning products. It is mainly used in all parts of the kiln that require heat insulation or lighter weight without direct contact with the melt, from aggressive gases, and without rapid temperature changes. Used at high temperatures and cannot be contacted with basic refractory materials. According to different materials, the maximum use temperature is 1200 ~ 1550 °C.

Application

Light weight fire clay brick is of low price, but of good thermal vibration stability and thermal insulation, mainly used in thermal boiler, glass kiln, cement kiln, fertilizer gas furnace, blast furnace, hot-blast stove, coking furnace, electric furnace, casting, etc.

Item		Unit	Wear-resistant refractory brick
Item		Unit	NMZ-1	NMZ-2	NMZ-3
Chemical composition	Al2O₃	%	≥85	≥75	≥65
	SiO₂	%	≤15	≤25	≤35
	Fe₂O₃	%	＜1.0	≤1.2	≤1.5
Density		g/cm³	≥2.9	≥2.6	≥2.5
Compressive strength (normal temperature)		Mpa	≥100	≥85	≥70
Apparent porosity		％	≤18	≤20	≤21
Abrasion resistance		cc	≤6	≤7	≤8
Refractoriness		℃	≥1790	≥1790	≥1790
Linear change on heating (900℃×3h)		％	≤0.05	≤0.1	≤0.1
Thermal conductivity(350℃)		w/m.k	≤1.8	≤1.8	≤1.5
Thermal shock stability(1100℃Water cooling)		次	20	20	20

$High Thermal Diatomite Bricks Fire Clay Brick For Refractory From Jiangsu 0$

etails:

1. Made by flint clay clinker and binder,through Crushing,Mixing,Shaping,Drying and high temperature Sintering.

2. Al2O3 content is 30%-48%,SiO2 content is 50%-65%,and a small number of alkali metals,alkaline earthmetal oxides TiO2,Fe2O3 etc.3.Working temperature:less than 1350°C.

Features:

1. Good resistance to abrasion and corrosion,

2. Good volume stability at high temperature,

3. Chemical attack to provide long service life,

4. Easy operation and installation,

5. Broad usage or applications and low price.

Application:

It is widely used as a primary hot face refractory lining or as back-up insulation behind other refractory in furnace(such as carbon furnace, cracking furnace, heating furnace for oil refining, roller kiln, tunnel kiln.), flues, refining vessels, heaters, regenerators and similar high temperature industrial equipment.

Factory show:

$High Thermal Diatomite Bricks Fire Clay Brick For Refractory From Jiangsu 1$

Packing and delivery:

Packing of Insulating brick: Standard export wooden pallet with cardboard.

Shipping of Insulating brick: By vessel or by train from any Chinese port,

Samples can be delivered by International express.

$High Thermal Diatomite Bricks Fire Clay Brick For Refractory From Jiangsu 2$

Tag:

Contact Person: Pan Junhui

Tel: +86 15861509962

Fax: 86-0510-87441369
