High Temperature Resistance Mullite Insulating Brick Insulating Ceramic Radiation Plate

High Temperature Resistance Mullite Insulating Brick Insulating Ceramic Radiation Plate
High Temperature Resistance Mullite Insulating Brick Insulating Ceramic Radiation Plate High Temperature Resistance Mullite Insulating Brick Insulating Ceramic Radiation Plate High Temperature Resistance Mullite Insulating Brick Insulating Ceramic Radiation Plate High Temperature Resistance Mullite Insulating Brick Insulating Ceramic Radiation Plate

Large Image :  High Temperature Resistance Mullite Insulating Brick Insulating Ceramic Radiation Plate

Product Details:
Place of Origin: Jiangsu, China
Brand Name: weihang
Certification: CE,ISO
Payment & Shipping Terms:
Minimum Order Quantity: 10 Ton
Price: Negotiate price
Packaging Details: Cartoon
Delivery Time: 5-8days
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Al2O3 Content (%):: 35%-73.4% Size:: Customizable
Name: Mullite Insulating Bricks Bulk Density, G/cm3: 0.45-1.02
Maximum Working Temp: 1100-1650 1100-1650: International Standard
Highlight:

mullite insulation brick

,

corundum mullite brick

High Temperature Resistance Insulating Ceramic Radiation Plate Refractory Corundum Mullite

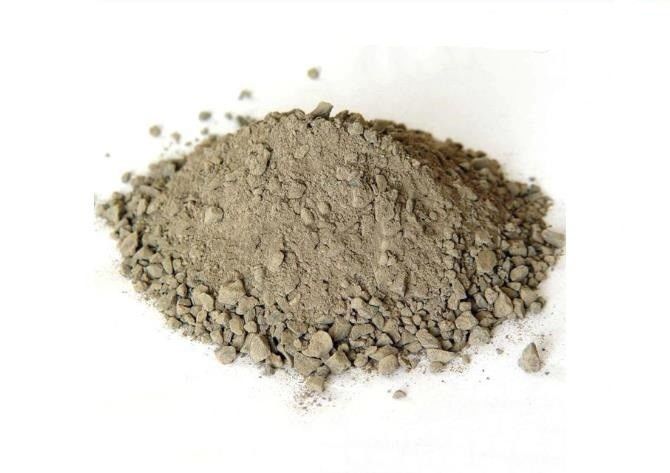

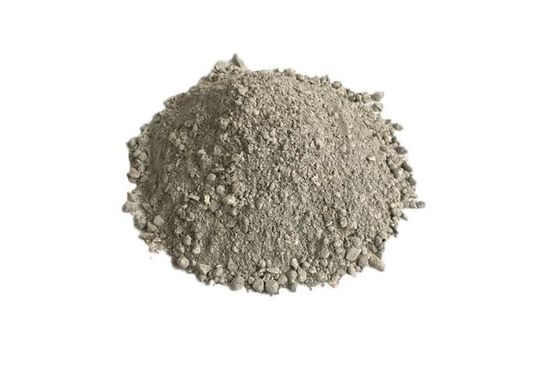

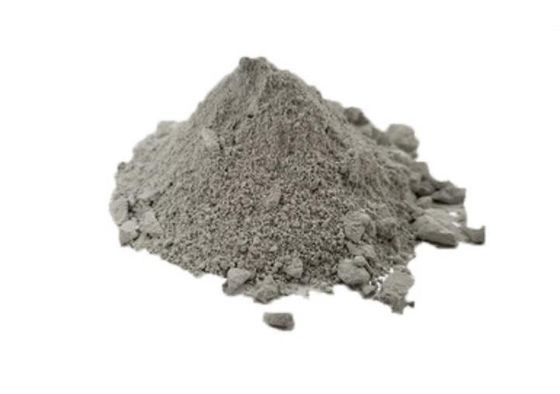

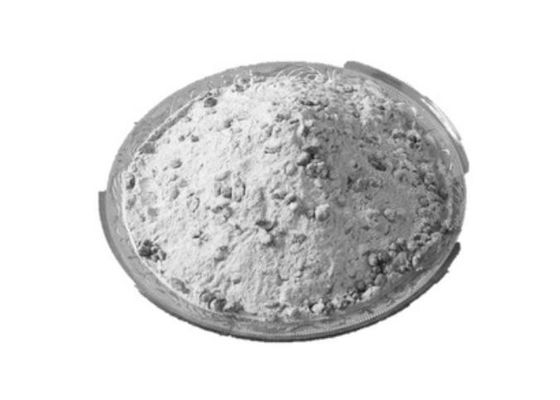

corundum mullite insulating refractory castable is a dry-mix material,which when mixed with water, chemically sets as hard as a brick. Properly cast and dried, it withstands 2200°F temperatures.It can be used to fill large hole in the stove.or cast it into custom shapes tailored to the exact needs of the fireplace or stove.



  ZA-70 ZA-85 ZA-90 ZA-95 ZA-96 ZA-98

(%)

Chemical composition

 Al2O3 70 85 90 95 96 98
(℃) refractoriness ＞1790 ＞1790 ＞1790   ＞1790 ＞1790
(Mpa) Cold crushing strength ＞40 ＞50 ＞50   ＞60 ＞60
(g/cm3) Bulk density 2.5 2.8 2.85   2.9 3.0
(%) Apparent porosity ＜25 ＜23 ＜23   ＜22 ＜21
(%) Linear change on reheating ＜0.1 (1500℃×3h) ＜0.1 (1500℃×3h) ＜0.1 (1500℃×3h)   ＜0.1 (1600℃×3h) ＜0.1 (1600℃×3h)

(℃)Refractoriness under load

 ＞1500 ＞1500 ＞1550   ＞1600 ＞1600



Features:

(1) strong resistance to erosion and scouring of molten iron and slag;
(2) good thermal shock resistance and re-burning volume
(3) strong anti-oxidation ability;
(4) easy to construct, can be quickly baked without bursting, easy to repair and dismantle;
(5) when used, no harmful gas, no sticky iron, long life. These features make them complementary and should be compatible with each other.



High Temperature Resistance Mullite Insulating Brick Insulating Ceramic Radiation Plate 0



Applications:
Corundum mullite Brick is mainly used for side walls of flame furnaces with embedded melter bottoms, for total security with average pulls and campaign lengths, and superstructures, front wall, back wall, top crown in glass melting furnace.

High Temperature Resistance Mullite Insulating Brick Insulating Ceramic Radiation Plate 1


Packing and shipping

Plastic bag(25kg), Kraft bag (25 kg), Plastic bag(1 ton);

1 ton on pallet with plastic film

As per customer’s request

Our packaging is as per customer’s request

Normal goods delivered by sea transport

Sample shipping by express

We will shipping and delivery goods timely, quanlity and quantity guaranteed, and also in accordance with the contract and customer's requirment completely !

High Temperature Resistance Mullite Insulating Brick Insulating Ceramic Radiation Plate 2

Tag:

mullite insulation brick,

corundum mullite brick,

high temp castable refractory
