High Temperature Insulation Ceramic Fiber 20mm Thickness Aluminum Silicate Blanket

Name: High Temperature Insulation Ceramic Fiber 20mm Thickness Aluminum Silicate Blanket
Brand: WeiHang
SKU: WeiHang
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (162 reviews)

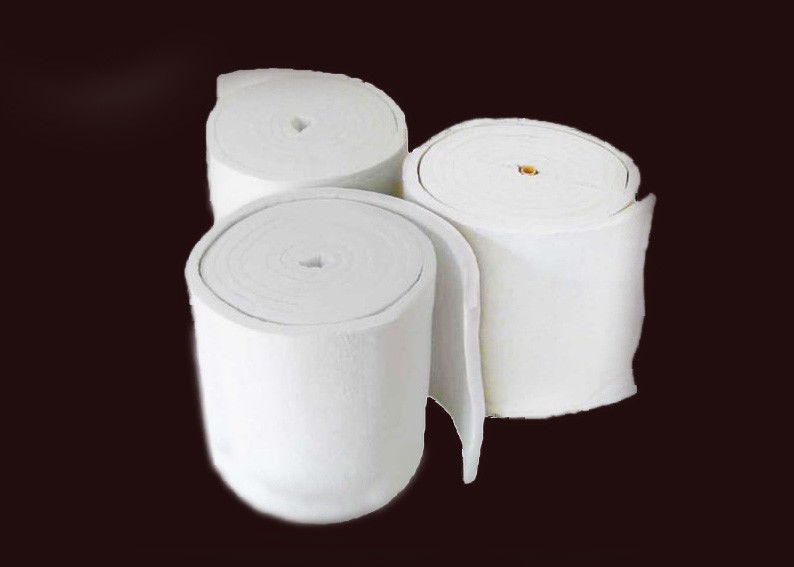

Large Image : High Temperature Insulation Ceramic Fiber 20mm Thickness Aluminum Silicate Blanket

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	WeiHang

Payment & Shipping Terms:

Price:	negotiation
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Raw Material::	Ceramic Fiber Spun Bulk	Item::	128kg/m3 Density Insulation Ceramic Fiber Blanket
Color::	Pure White	Application::	Liners Of Industrial Furnace
Length::	3600-14640mm	Package::	Carton
High Light:	ceramic fiber wool insulation , refractory ceramic fibres

High Temperature Ceramic Fiber Products 20mm thickness Aluminum Silicate Blanket

Ceramic fiber insulation blanket is also called needled-fiber blanket.included common ceramic blanket, standard ceramic blanket,high pure ceramic blanket, high aluminium ceramic blanket and zirconium alumina silicate fiber bulk blanket.

It is made of high quality ceramic fiber spun bulk by using double inside needling methods which improve the tensile strength and the flatness of the ceramic fiber blanket.

Item		Unit	Aluminum Silicate Fiber Felt	High alumina aluminum silicate fiber felt	Needle punched aluminum silicate blanket	Zirconium-containing aluminum silicate fiber felt	Aluminum silicate fiber brick	Aluminum silicate fiber rope
Chemical composition	Al2O₃	%	46	>60		>38	>46	>46
	SiO₂	%	<50	<38		<1.0(ZrO2)	52	52
	Fe₂O₃	%	<1.2	<1.0		<1.0	1.2	1.2
Fiber diameter		μm	1-4	1-4	2-4	-	1-4	-
Density		Kg/m³	≥150	≥200	≥90	≥95	≥300	≥450
Slag ball content(>0.22mm)		%	<4	<4	-	<10	<5	<5
Thermal Conductivity		W/m.k	<0.045	<0.045	<0.038	<0.055	<0.068	<0.068
Maximum use temperature			1100		1200	1250

Features

Low thermal conductivity, low thermal capacity

Excellent thermal stability and good resistance to heat shock

Excellent tensile strength

Good anti-stripping performance

Good Sound-absorbing performance

Non-brittleness material, good flexibility

Excellent machining performance

Resistance to wind and erosion, long service life

Excellent heat insulation, fire prevention,

sound absorption performance

Applications

• The industry kiln, heating device, high temperature pipe lining

• Power boiler, gas turbine and heat and nuclear power insulation

• Chemical industrial high temperature equipment and heating equipment lining

• Fireproof and heat insulation for high building

• High-grade household appliances thermal insulation device

• High temperature filtration etc
