Glass Furnace Fire Clay Bricks Sk34 Firebrick Good Volume Stability High Refractoriness

Glass Furnace Fire Clay Bricks Sk34 Firebrick Good Volume Stability High Refractoriness
Glass Furnace Fire Clay Bricks Sk34 Firebrick Good Volume Stability High Refractoriness Glass Furnace Fire Clay Bricks Sk34 Firebrick Good Volume Stability High Refractoriness Glass Furnace Fire Clay Bricks Sk34 Firebrick Good Volume Stability High Refractoriness Glass Furnace Fire Clay Bricks Sk34 Firebrick Good Volume Stability High Refractoriness

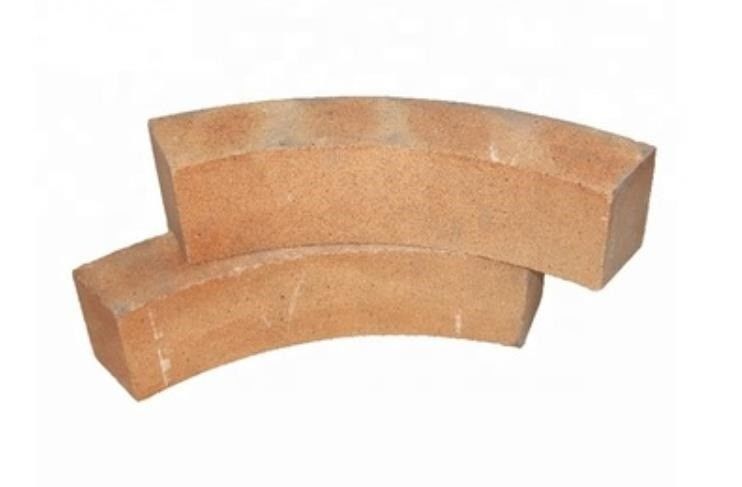

Large Image :  Glass Furnace Fire Clay Bricks Sk34 Firebrick Good Volume Stability High Refractoriness

Product Details:
Brand Name: WeiHang
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: negotiation
Packaging Details: Cartoon
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Cold Crushing Streng: 60Mpa Bulk Density:: 2.4-2.6g/cm3
Model Number:: Customer's Requirement Refractoriness (Degree):: Common (1580°< Refractoriness< 1770°)
Bulk Density:: 1.9-2.15g/cm3 Cold Crushing Strength Mpa:: ≥25
Apparent Porosity/%: 16%
High Light:

clay bricks for fire pit

,

insulating fire brick

Factory Price Good Volume Stability Sk34 Fireclay Brick for Glass Furnace



Special size and OEM Service also provide!
The size is precise, providing kinds of shapes according to customer's drawing


Fuller earth price fireclay brick is also known as fire brick. It is made of local top grade fireclay materials under the high temperature according to the lasted national standard, which possesses even bulk density, high strength, low thermal conductivity and low impurity. Fire clay refractory brick has wide usage and the largest production. Its Al2O3 is generally more than 40%, Fe2O3 is less than 2.0 ~ 2.5%. Clay brick has weakly acidic at high temperature and has poor performance in resistance to alkaline and slag erosion, but it increases with the increase of Al2O3 content. Fulle





 specified value
ZN-45 ZN-40 ZN-36
Al2O3 % ≥ 45 40 36

 ℃ ≥

0.2Mpa RUL

 1430 1380 1350

 (/cm3)

Bulk density

 2～2.4

1400℃×2h %

permanent linear change

 -0.2～+0.1 -0.3～+0.1 -0.4～+0.1

％ ≤

Apparent porosity

 16 19(22) 22(24)

 Mpa ≥

Cold crushing strength

 60 40(35) 35(30)

Note 1: bulk density is just for designing brick quantity, without reference.

Note 2: date in bracket is for checker brick or Manual molding brick.



Normal fireclay bricks



  specified value
PN-1 PN-2 PN-3

 ℃ ≥

0.2Mpa RUL

 300 1250 1200

1350℃×2h %

permanent linear change

 -0.5～+0.1 -0.5～+0.2 －

％ ≤

Apparent porosity

 24 26 28
 Mpa ≥ Cold crushing strength 30 25 20




Applications Of Fire Refractory Brick
They are widely used in all parts of furnace lining for middle and small capacity furnace such as glass furnace, blast furnace, hot-air furnace, cement furnace,chemical furnace and other heating engineering equipment.

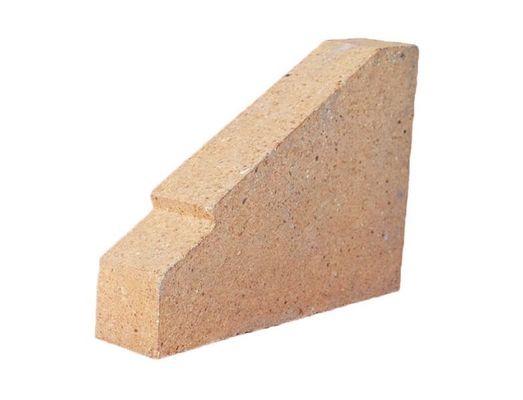

Glass Furnace Fire Clay Bricks Sk34 Firebrick Good Volume Stability High Refractoriness 0




Features

1. Line expansion coefficients is low.
2. Good thermal shock resistance.
3. Strong ability to resist erosion acid slag. Good corrosion resistance.
4. High refractoriness, High-temperature endurable.
5. Good spalling resistance and wear resistance.
6. High-temperature creep rate is low.
7. Good volume stability at high temperature.

Factory show:

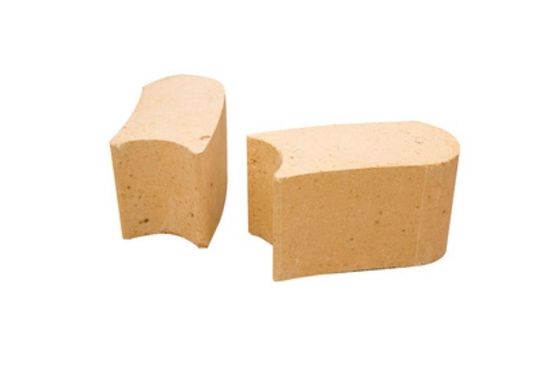

Glass Furnace Fire Clay Bricks Sk34 Firebrick Good Volume Stability High Refractoriness 1

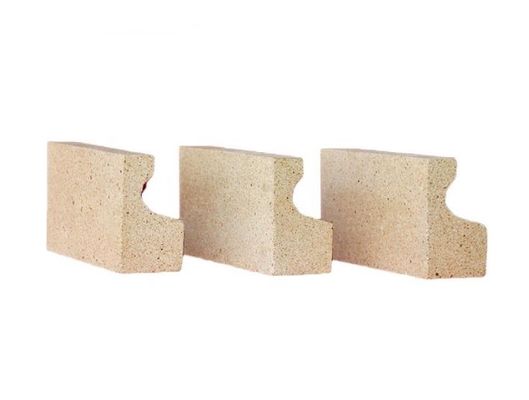

Glass Furnace Fire Clay Bricks Sk34 Firebrick Good Volume Stability High Refractoriness 2

Packaging & Delivery
1. Carton packaging .
2. tray + plastic film + fixed band .
3. pallets: 1*1m,0.93*0.93m .
4. tray weight: 1.6~2.0ton.
5. packaging according to customer service requirements .

Our Services
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand,quickly respond mails and provide solutions.
2. Free sample
Sample and trial order are accepted for the quality evaluation
3. Strict quality control
Arrange production on time and control quality strictly.
4. Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
