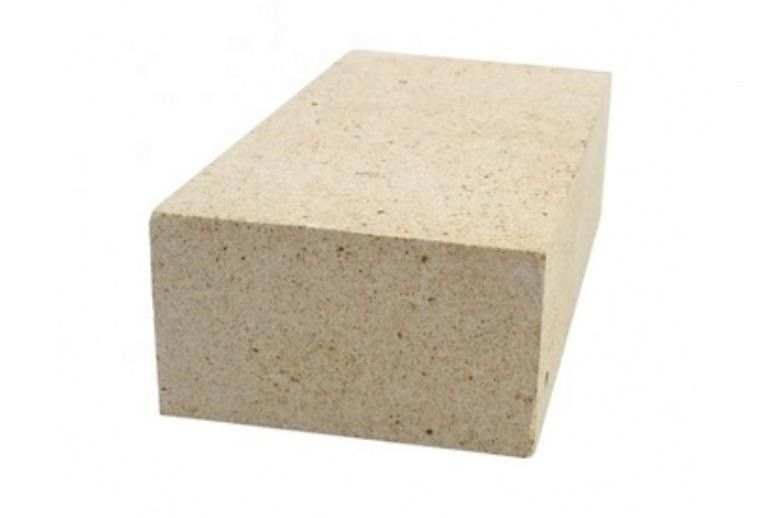

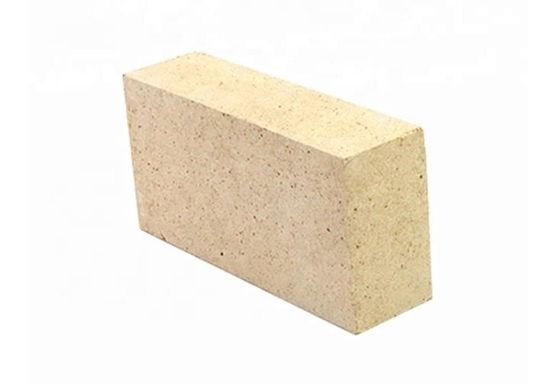

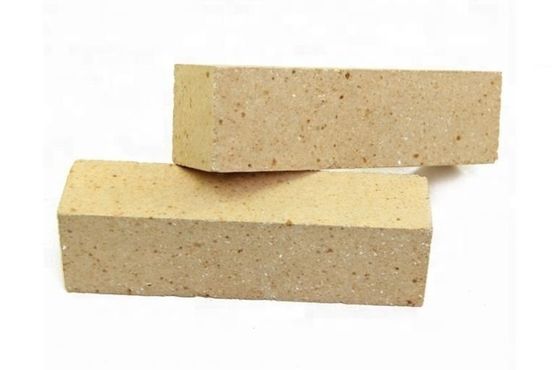

High Temperature Fire Resistant Clay Brick For Blast Furnace
Fire clay bricks were mainly made from chamotte, flint clay and combining clay powder, being high pressure pressed and sintered in high temperature.
Low porosity bricks are made from low mullite stones, the main mineral composition of the low mullite stones are pressed and sintered mullite phases. The bricks have very good physical and chemical properties in high temperature conditions.
| |
NG135-1.3 |
NG135-1.2 |
NG135-1.1 |
NG130-1.0 |
NG125-0.8 |
NG120-0.6 |
NG115-0.4 |
|
g/cm3 ≤
Bulk density
|
1.3 |
1.2 |
1.1 |
1.0 |
0.8 |
0.6 |
0.4 |
| Mpa≥ Cold crushing strength |
5 |
4.5 |
4 |
3.5 |
3 |
2 |
1 |
|
Linear change on reheating ≤2%
|
1350 |
1350 |
1350 |
1300 |
1350 |
1200 |
1150 |
|
(350±25℃) W/m.k ≤
Thermal conductivity
|
0.55 |
0.5 |
0.45 |
0.4 |
0.35 |
0.25 |
0.2 |
Feactures:
1. Clay brick Good thermal stability, low thermal conductivity, good insulation performance.
2. Clay brick Low bulk density, good integrity, high mechanical strength.
3. Clay brick Good thermal shock stability, good resistance to abrasion and corrosion.
4. Good volume stability at high temperature.
5. Clay brick Low water absorption rate, low creeping rate.
6. Natural clay products, could be shaped freely, non-radioactive and environmentally friendly.
7. Clay brick Two casted method: down draft kiln and tunnel kiln. General sintering temperature: 1280-1350 °C
Application:
It is not only widely used in insulating layers of various of thermal processing equipments, such as hot blast furnace, coke oven, glass kiln, etc, but also apply to linings in parts of furnace without strong high-temperature molten material erosive.
