92% 99% High Al2o3 Inert Alumina Ceramic Balls High Temperature Resistance

Name: 92% 99% High Al2o3 Inert Alumina Ceramic Balls High Temperature Resistance
Brand: WeiHang
SKU: WeiHang
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (133 reviews)

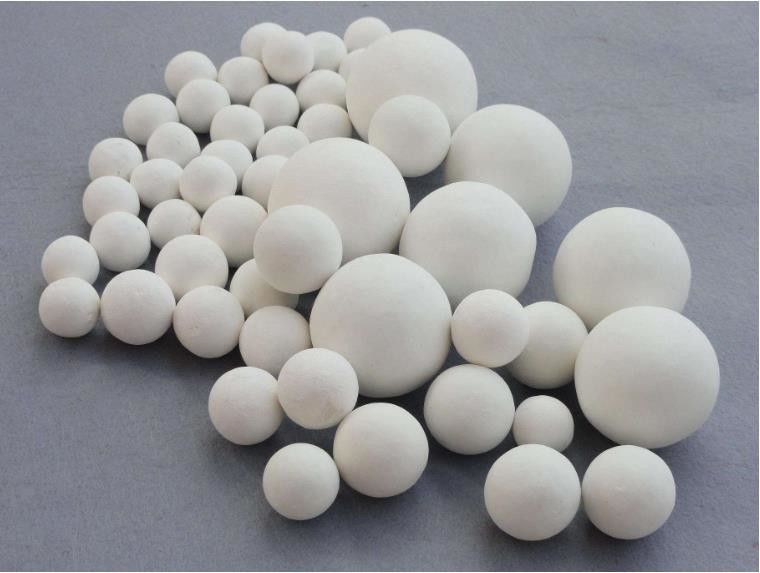

Large Image : 92% 99% High Al2o3 Inert Alumina Ceramic Balls High Temperature Resistance

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	WeiHang

Payment & Shipping Terms:

Minimum Order Quantity:	1 Long Tons
Price:	Negotiation
Packaging Details:	insert + polybag
Supply Ability:	5000 Long Tons Per Month

Contact Now

Detailed Product Description

Name::	Catalyst Support Ceramic Ball	Acid Resistance::	>90%
Bulk Density::	1300-1400 Kg/m3	Al2O3::	17-23%
Material::	Alumina Ceramic	Usage:	Support Media
High Light:	aluminum oxide ceramic balls , catalyst bed support balls

Factory High Temperature Resistance 92% 99% High Al2o3 Inert Alumina Ceramic Balls

Production Introduction

Inert alumina ceramic ball has the characteristics of high strength, low water absorption, high chemical stability, high thermal stability, resistance to high temperature and high pressure. It can not only resist the corrosion from the acid, alkali, salt and other organic solvent, but also the temperature change in production process.
Inert alumina ceramic ball is widely used in petroleum, chemical, fertilizer, natural gas and environmental protection industries, as the supporting and covering material of catalyst in reactors. Its main role is to increase the distributing spot of gas or liquid, also support and protect the activated catalyst with low strength.

Inert alumina ceramic ball characteristics and advantages

1. High mechanical strength (Monolithic spheres will not split, crack or spall in use)
2. High temperature resistance
3. Lower water absorption
4. Quite excellent chemical stability
5. Can resist corrosion of acid, alkali and other organic solvent
6. Excellent thermal shock resistance (can withstand the temperature urgent changes occurred in production process)
7. Trouble-free reactor filling due to high crush strength
8. Will not plug catalyst bed, optimizing the process efficiency by keeping the pressure drop low and catalyst activity high
9. No contaminate catalyst due to maximize resistance to attrition, extending the catalyst Activity life and reduce the operation cost

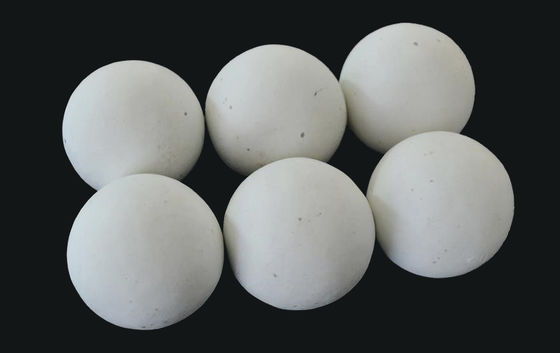

92% 99% High Al2o3 Inert Alumina Ceramic Balls High Temperature Resistance 0

Model				17%-19%Ordinary Ceramic Ball
Color				Light gray
Shape				Ball
Chemical composition				Min. %			Max. %			Usual %
	Al2O3			17			19			18
	SiO2			70			77			74.9
	Al2O3 + SiO2			90			94			93
	Fe2O3			/			1.0			0.9
	TiO2			/			0.5			0.46
	CaO			/			0.5			0.42
	MgO			/			0.5			0.38
	Na2O			/			2			1.12
	K2O			/			3.5			3.28
Physical properties	Leachable Iron (%)						≤0.1
	Apparent Porosity by Weight (%)			D≥10mm			≤0.4
				D=6mm			≤1.0
				D=3mm			≤3.0
	Water absorption (wt.%)						<0.5
	Acid resistance (%)						>99.8
	Alkaline resistance (%)						>85
	Bulk Density			(g/cm3)			1.35
				(lb/ft3)			84
	Specific density			(kg/m3)			2300
				(lb/ft3)			144
	Moh’s hardness (scale)						>6.5
	Thermal conductivity (w/m2.k)						0.9-1.0
	Specific heat (J/kg.℃)						628-837
	Max. Operating Temperature			(℃)			1050
				(℉)			1922
	Thermal expansion (%) (500℃)						0.20
	Thermal Shock Stability (times) (500 ℃ then water cooling)						10
Geometric properties	Nominal Size	(mm)	3	6	10	13	16	19	25		38	50
		(inch)	1/8	1/4	3/8	1/2	5/8	3/4	1		1.5	2
	Crush Strength Min.	(lbs)	77	176	234	572	726	1672	1870		2090	3476
		(kg)	35	80	106	260	330	760	850		950	1580
		(N/PC)	343	784	1039	2548	3234	7448	8330		9310	15484

Inert 92% alumina ceramic balls application:

Inert alumina balls are widely used as the covering or supporting media of the catalyst in the reactors and tower packing in many fields such as petroleum, chemical industry, chemical fertilizer, natural gas and environmental protection etc. The main role is to buffer the impact of liquid and gas to the catalyst in the reactor, protect the catalyst and improve the distribution of liquid and gas in the reactor.

Packing and delivery:

Packing of Insulating brick: Standard export wooden pallet with cardboard.

Shipping of Insulating brick: By vessel or by train from any Chinese port,

Samples can be delivered by International express.

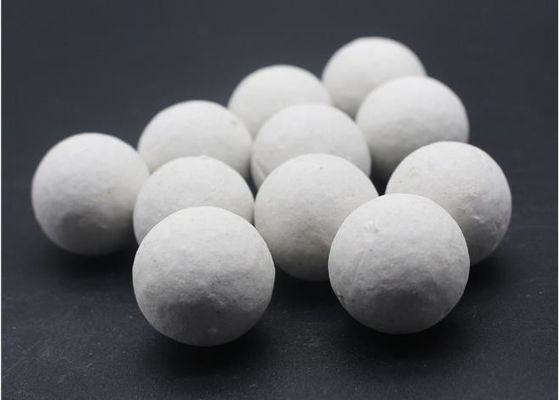

92% 99% High Al2o3 Inert Alumina Ceramic Balls High Temperature Resistance 1
