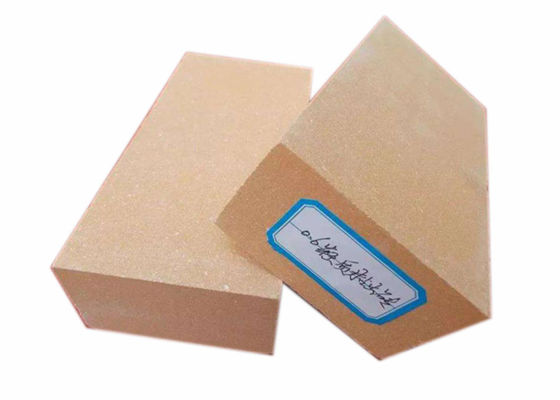

Yellow Fire Clay Bricks High Aluminum Light Fire Brick For Coke Oven , Glass Kiln

Yellow Fire Clay Bricks High Aluminum Light Fire Brick For Coke Oven , Glass Kiln
Yellow Fire Clay Bricks High Aluminum Light Fire Brick For Coke Oven , Glass Kiln Yellow Fire Clay Bricks High Aluminum Light Fire Brick For Coke Oven , Glass Kiln Yellow Fire Clay Bricks High Aluminum Light Fire Brick For Coke Oven , Glass Kiln Yellow Fire Clay Bricks High Aluminum Light Fire Brick For Coke Oven , Glass Kiln

Large Image :  Yellow Fire Clay Bricks High Aluminum Light Fire Brick For Coke Oven , Glass Kiln

Product Details:
Brand Name: WeiHang
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: negotiation
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Apparent Porosity:: 20-22% Cold Crushing Streng: 60Mpa
Bulk Density:: 2.4-2.6g/cm3 Material:: Alumina Block
Model Number:: Customer's Requirement Refractoriness (Degree):: 1580°< Refractoriness< 1770°
Bulk Density:: 1.9-2.15g/cm3
Highlight:

clay bricks for fire pit

,

clay fire blocks

Specification Of High Aluminum Light Weight Insulating Brick



Special size and OEM Service also provide!
The size is precise, providing kinds of shapes according to customer's drawing

High temperature endurable high alumina refractory brick/tile for tunnel kiln in Vietnam is made by clay clinker or light clinker and plastic clay as the main raw material, usually fuel production, but also can send or chemical foaming method porous structure. Common light chamotte bulk density of 0.75 ~ 1.2g / cm3. It refers to containing AL2O3 30% ~ 46% of lightweight refractory products, mainly for industrial kilns does not melt and no erosion of the contact action of gas insulation layer material, the using temperature is 1200 ~ 1400 ° C.






 specified value
ZN-45 ZN-40 ZN-36
Al2O3 % ≥ 45 40 36

℃ ≥

0.2Mpa RUL

 1430 1380 1350

 (/cm3)

Bulk density

 2～2.4

1400℃×2h %

permanent linear change

 -0.2～+0.1 -0.3～+0.1 -0.4～+0.1

 ％ ≤

Apparent porosity

 16 19(22) 22(24)

Mpa ≥

Cold crushing strength

 60 40(35) 35(30)

Note 1: bulk density is just for designing brick quantity, without reference.

Note 2: date in bracket is for checker brick or Manual molding brick.


Application of light weight bricks:

It is not only widely used in insulating layers of various of thermal processing equipments, such as hot blast furnace, coke oven, glass kiln, etc, but also apply to linings in parts of furnace without strong high-temperature molten material erosive.

Specifications
1. According the shape, it can be divided into standard brick, special-shaped brick.
2. According thecharacteristic, it can be divided into high alumina insulating brick, fire clay insulating brick, Mullite insulating brick, corundum insulating brick, etc.
3. According the application, it can be divided into building materials for blast furnace, Building materials for coke oven, Building materials for steel making furnace and so on


Yellow Fire Clay Bricks High Aluminum Light Fire Brick For Coke Oven , Glass Kiln 0

Features

1. It has advantages with small bulk density, high cold crushing strength, and high refractoriness under load, small dimension tolerance and good thermal shock resistance.

2. It has the lowest and most stable thermal conductivity in various insulating refractory bricks

3. It can reduce the total weight of furnace body and the thickness of furnace wall effectively, improve heat efficiency, lower energy consumption, improve work conditions and production efficiency, and considerable economic benefit can be obtained.


Quality Assurance
The quality assurance system consists of the following steps:

a.Inspection and Control of incoming raw materials:According to the chemical content,raw materials are classified into different levels to ensure quality of brick first.

b.Inspection and control of the process:During the production,every brick will be weighed twice strictly to reduce the error of weight .

c.Inspection of product Standardization of quality of each product by process control and experimentation.

d.Taking corrective measures whenever deviations are noted.

e.Quality audit by quality management.Before delivery, the inspectors will inspect the size,appearance,physical and chemical properties of brick again in factory.

Factory show:

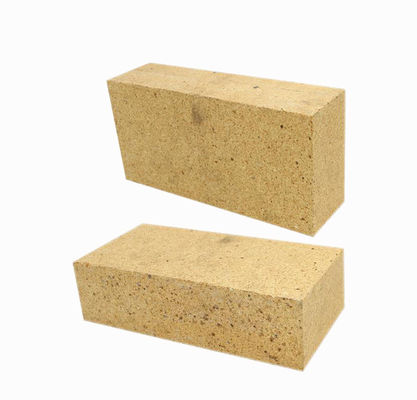

Yellow Fire Clay Bricks High Aluminum Light Fire Brick For Coke Oven , Glass Kiln 1

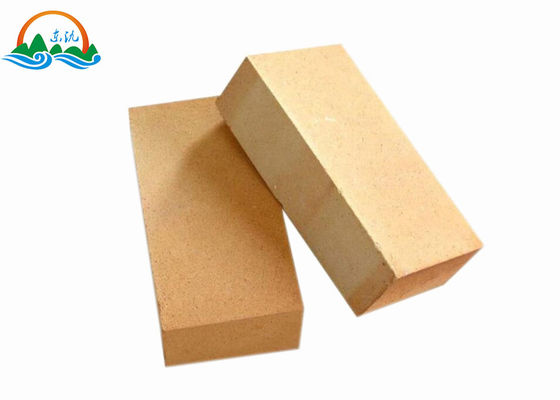

Yellow Fire Clay Bricks High Aluminum Light Fire Brick For Coke Oven , Glass Kiln 2

Packaging & Delivery
1. Carton packaging .
2. tray + plastic film + fixed band .
3. pallets: 1*1m,0.93*0.93m .
4. tray weight: 1.6~2.0ton.
5. packaging according to customer service requirements .

Test
Before delivery, we usually test at least twice by professinal testing equipment.Our company's testing equipmets as follows:
1.High Temperature RUL Tester
2.Bulk Density Tester
3.The Pressure Tester
4.Refractoriness Tester





Tag:

insulating fire brick,

clay fire blocks,

clay bricks for fire pit
